Butt weld Fitting Long Stub End

Guru Gautam Steels are manufacturer of Buttweld Fittings and supply high quality ANSI / ASME b16.9 Butt weld Long Stub End offer you the best prices in the market. The Long Stub ends are manufactured in all standard dimensions. Our high quality Long stub ends Butt weld pipe fittings are tested and verified for durability, accuracy and precision.
long stub end

Carbon Steel, Alloy Steel ASME B16.25, ANSI B19.28, MSS-SP-43 Long Stub End, Pipe Fittings Long Stub End Manufacturer & Supplier in india.


LONG STUB END SPECIFICATION :

Standard - ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless Pipe Long Stub End Size: 1/2"~24"

ERW / Welded / Fabricated Long Stub End Size: 1/2" (15 NB) to 48" (1200NB)

Form: Long Pipe Stub End, Fitting Long Stub End


LONG STUB END MATERIAL & GRADES :

Stainless Steel Long Stub End : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Long Stub End : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Alloy Steel Long Stub End : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

Duplex Steel Long Stub End : ASTM A815, ASME SA815 UNS No S31803, S32205

Super Duplex Long Stub End : ASTM A815, ASME SA815 UNS No S32750, S32950

Nickel Alloy Long Stub End : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

Low Temperature Carbon Steel Long Stub End : ASTM A420 WPL3, A420 WPL6


PIPE LONG STUB END DIMENSIONS :

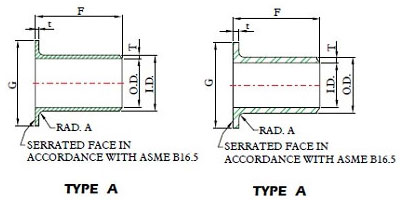

long stub end dimensions
Product Nom. Pipe Size Dia (G) Length (F), Short Outside Dia (O.D.) Radius (A), A Schedule 160, Approx. Weight Sch 160, Inside Dia (I.D.) Sch 160, Lap Thickness (t) Schedule 160, Wall Thickness (T) XX Strong Wall Approx. Weight XX Strong Wall, Inside Dia (I.D.) XX Strong Wall, Lap Thk (t) XX Strong Wall, Wall Thickness (T)
1 1/2" Lap- Joint Stub End / Stub Ends Long Type "A 1.5 2.875 2 1.9 0.25 2.08 1.338 0.281 0.281 2.98 1.1 0.4 0.4
1 1/2" Lap- Joint Stub End / Stub Ends Long Type "A" 1.5 2.875 4 1.9 1.2 1.61 0.15 0.15 1.49 1.5 0.2 0.2
1 1/4" Lap- Joint Stub End / Stub Ends Long Type "A 1.25 2.5 2 1.66 0.1875 1.64 1.16 0.25 0.25 2.52 0.896 0.382 0.382
1 1/4" Lap- Joint Stub End / Stub Ends Long Type "A" 1.25 2.5 4 1.66 0.97 1.38 0.14 0.14 1.26 1.278 0.191 0.191
1" Lap- Joint Stub End / Stub Ends Long Type "A 1 2 2 1.315 0.125 1.22 0.815 0.25 0.25 1.76 0.599 0.358 0.358
1" Lap- Joint Stub End / Stub Ends Long Type "A" 1 2 4 1.315 0.68 1.049 0.133 0.133 0.88 0.957 0.179 0.179
1/2" Lap- Joint Stub End / Stub Ends Long Type "A 0.5 1.375 2 0.84 0.125 0.43 0.464 0.187 0.188 0.68 0.252 0.294 0.294
1/2" Lap- Joint Stub End / Stub Ends Long Type "A" 0.5 1.375 3 0.84 0.26 0.622 0.109 0.109 0.34 0.546 0.147 0.147
10" Lap- Joint Stub End / Stub Ends Long Type "A 10 12.75 5 10.75 0.5 121.5 8.5 1.125 1.125 - - - -
10" Lap- Joint Stub End / Stub Ends Long Type "A" 10 12.75 10 10.75 39.5 10.02 0.365 0.365 54 9.75 0.5 0.5
12" Lap- Joint Stub End / Stub Ends Long Type "A 12 15 6 12.75 0.5 169 10.126 1.312 1.312 - - - -
12" Lap- Joint Stub End / Stub Ends Long Type "A" 12 15 10 12.75 48.5 12 0.375 0.375 64.5 11.75 0.5 0.5
14" Lap- Joint Stub End / Stub Ends Long Type "A" 14 16.25 12 14 63 13.25 0.375 0.375 84 13 0.5 0.5
16" Lap- Joint Stub End / Stub Ends Long Type "A" 16 18.5 12 16 73.5 15.25 0.375 0.375 98 15 0.5 0.5
18" Lap- Joint Stub End / Stub Ends Long Type "A" 18 21 12 18 99 17.25 0.375 0.375 136 17 0.5 0.5
2 1/2" Lap- Joint Stub End / Stub Ends Long Type "A 2.5 4.125 2.5 2.875 0.3125 5.94 2.125 0.375 0.375 8.8 1.771 0.552 0.552
2 1/2" Lap- Joint Stub End / Stub Ends Long Type "A" 2.5 4.125 6 2.875 3.4 2.469 0.203 0.203 4.4 2.323 0.276 0.276
2" Lap- Joint Stub End / Stub Ends Long Type "A 2 3.625 2.5 2.375 0.3125 4.79 1.689 0.343 0.343 6.1 1.503 0.436 0.436
2" Lap- Joint Stub End / Stub Ends Long Type "A" 2 3.625 6 2.375 2.25 2.067 0.154 0.154 3.05 1.939 0.218 0.218
20" Lap- Joint Stub End / Stub Ends Long Type "A" 20 23 12 20 108 19.25 0.375 0.375 157 19 0.5 0.5
3 1/2" Lap- Joint Stub End / Stub Ends Long Type "A 3.5 5.5 3 4 0.375 - - - - 15.5 2.728 0.636 0.636
3 1/2" Lap- Joint Stub End / Stub Ends Long Type "A" 3.5 5.5 6 4 5.89 3.548 0.226 0.226 7.75 3.364 0.318 0.318
3" Lap- Joint Stub End / Stub Ends Long Type "A 3 5 2.5 3.5 0.375 7.1 2.624 0.438 0.438 9.8 2.3 0.6 0.6
3" Lap- Joint Stub End / Stub Ends Long Type "A" 3 5 6 3.5 4.65 3.068 0.216 0.216 6.5 2.9 0.3 0.3
3/4" Lap- Joint Stub End / Stub Ends Long Type "A 0.75 1.688 2 1.05 0.125 0.66 0.612 0.218 0.219 0.94 0.434 0.308 0.308
3/4" Lap- Joint Stub End / Stub Ends Long Type "A" 0.75 1.688 3 1.05 0.36 0.824 0.113 0.113 0.47 0.742 0.154 0.154
4" Lap- Joint Stub End / Stub Ends Long Type "A 4 6.188 3 4.5 0.4375 15.15 3.438 0.531 0.531 19.3 3.152 0.674 0.674
4" Lap- Joint Stub End / Stub Ends Long Type "A" 4 6.188 6 4.5 6.83 4.026 0.237 0.237 9.65 3.826 0.337 0.337
5" Lap- Joint Stub End / Stub Ends Long Type "A 5 7.313 3 5.563 0.4375 27.1 4.313 0.625 0.625 32.66 4.063 0.75 0.75
5" Lap- Joint Stub End / Stub Ends Long Type "A" 5 7.313 8 5.563 11.88 5.047 0.258 0.258 16.33 4.813 0.375 0.375
6" Lap- Joint Stub End / Stub Ends Long Type "A 6 8.5 3.5 6.625 0.5 37.56 5.187 0.718 0.719 45.26 4.897 0.864 0.864
6" Lap- Joint Stub End / Stub Ends Long Type "A" 6 8.5 8 6.625 15.18 6.065 0.28 0.28 22.63 5.761 0.432 0.432
8" Lap- Joint Stub End / Stub Ends Long Type "A 8 10.625 4 8.625 0.5 61.75 6.813 0.906 0.906 59.71 6.875 0.875 0.875
8" Lap- Joint Stub End / Stub Ends Long Type "A" 8 10.625 8 8.625 23.81 7.981 0.322 0.322 34.12 7.625 0.5 0.5


inches ND mm Diameter of lap

Radius of fillet

 Length F

D

 G R R1 MSS SP43 ANSI B16.9
1/2 15 21,34 34,92 3,17 0,80 50,80 76,20
3/4 20 26,67 42,86 3,17 0,80 50,80 76,20
1 25 33,40 50,80 3,17 0,80 50,80 101,60
1 1/4 32 42,16 63,50 4,76 0,80 50,80 101,60
1 1/2 40 48,26 73,00 6,35 0,80 50,80 101,60
2 50 60,32 92,10 7,93 0,80 63,50 152,40
2 1/2 65 73,02 104,80 7,93 0,80 63,50 152,40
3 80 88,90 127,00 9,52 0,80 63,50 152,40
3 1/2 90 101,60 139,70 9,52 0,80 76,20 152,40
4 100 114,30 157,20 11,11 0,80 76,20 152,40
5 125 141,30 185,70 11,11 1,58 76,20 203,20
6 150 168,27 215,90 12,70 1,58 88,90 203,20
8 200 219,07 269,80 12,70 1,58 101,60 203,20
10 250 273,05 323,80 12,70 1,58 127,00 254,00
12 300 323,85 381,00 12,70 1,58 152,40 254,00
14 350 355,60 412,70 12,70 1,58 152,40 304,80
16 400 406,40 469,90 12,70 1,58 152,40 304,80
18 450 457,20 533,40 12,70 1,58 152,40 304,80
20 500 508,00 584,20 12,70 1,58 152,40 304,80
22 550 558,80 641,30 12,70 1,58 152,40 304,80
24 600 609,60 692,10 12,70 1,58 152,40 304,80
The lap thickness T shall not be less than nominal pipe wall thickness t
All dimensions are in millimeters.

STUB ENDS - Ansi 16.9 tolerances

DIMENSIONAL TOLERANCES - STUB ENDS
For all fittings Stub Ends
Nominal Pipe Size (NPS) Outside Ø at Bevel Indide Ø at End Wall Thickness
t / t1
 O.D. of Lap G Fillet Radius of Lap - R Overall Length. - F
1/2 a 2 1/2
1
0,8
Not
+0 -1
+0-1
2
3 a 3 1/2
1
1,6
less
+0 -1
+0-1
2
4
+2 -1
1,6
than
+0 -1
+0 -2
2
5 a 6
+3 -1
1,6
87,50%
+0-1
+0 -2
2
8
2
1,6
of nominal
+0 -1
+0 -2
2
10
+4 -3
3,2
tickness
+0 -2
+0 -2
2
12 to 18
+4-3
3,2
+0 -2
+0-2
3
20 a 24
+6-5
4,8
+0 -2
+0 -2
3
26 a 30
+7 -5
4,8
32 a 48
+7 -5
4,8

STUB ENDS - Weights
NPS
inches
STUB ENDS
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2
0.06
0.08
0.12
0.13
3/4
0.07
0.09
0.15
0.17
1
0.09
0.15
0.20
0.25
1 1/4
0.13
0.20
0.30
0.35
1 1/2
0.16
0.25
0.38
0.46
2
0.25
0.40
0.55
0.75
2 1/2
0.35
0.50
0.80
1.00
3
0.50
0.60
1.10
1.50
4
0.70
1.00
1.80
2.50
5
1.00
1.25
2.50
3.50
6
1.60
1.95
3.70
5.50
8
2.50
3.10
5.90
10.0
10
4.00
4.90
10.5
14.0
12
6.60
7.10
15.0
20.0
14
6.40
7.80
15.5
20.5
16
7.90
9.00
18.0
24.0
18
9.30
10.5
21.0
28.0
20
12.0
13.5
23.5
31.0
24
16.5
19.0
28.5
38.0
Approximate weights in kg, density 8 kg/dm3


Marking & Packing
Our products like long stubend are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All long stubend are marked with Trademark (Company’s LOGO), Grade, Size and Lot No. On requests we can do custom marking on our products.
