Welding Outlets

Guru Gautam Steels are manufacturer of Welding Outlets Fittings and supply high quality Sweep Outlets offer you the best prices in the market. Welding Outlets are tested and verified for durability, accuracy and precision. Welding Outlets fittings are available in Class 3000, Class 6000 & Class 9000 and all pipe schedules in a variety of materials.
Welding Outlets

MSS SP-97, ASTM A105 Carbon Steel Welding Outlet, ASTM A182 Alloy Steel Welding Outlets Manufacturer & Supplier in india.


Welding Outlet SPECIFICATION :

Size : 1/2'' to 24''

Class : 3000LBS, 6000LBS, 9000LBS

Thickness : SCH 5S,SCH 10S, SCH 40S, SCH 80S, SCH 120S

Type : Welding Outlet


Welding Outlets MATERIAL & GRADES :

Stainless Steel Welding Outlets : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Welding Outlets : ASTM A105 / 350 LF2 / A516 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 / 70

Alloy Steel Welding Outlets : ASTM / ASME A/SA 182 F1 / F5 / F9 / F11 / F22 / F91

Duplex Steel Welding Outlets : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 UNS No S31803, S32205

Super Duplex Welding Outlets : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 UNS No S32750, S32950

Nickel Alloy Welding Outlets : ASTM / ASME SB 564 /160 /472, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II).

Copper Alloy Welding Outlets : ASTM / ASME SB 61/62/151/152, UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200, Cupro Nickel 90/10 (C 70600), Cupro Nickel 70/30. (C 71500).


Welding Outlets DIMENSIONS :

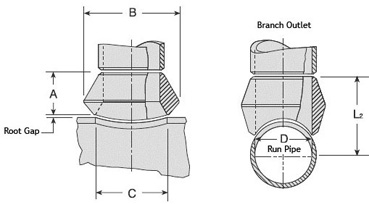

welding Outlets dimensions


Outlet
Nominal Pipe Size		 Face to Crotch (L)
Standard (SCH40S) XS (SCH80S) SCH160
Réduit Egal Réduit Egal Réduit Egal
1/8"
16
-
16
-
-
-
1/4"
16
-
16
-
-
-
3/8"
16
-
19
-
-
-
1/2"
19
19
19
19
28
28
3/4"
22
22
22
22
32
32
1"
27
27
27
27
38
38
1 1/4"
32
32
32
30
44
44
1 1/2"
33
33
33
32
51
51
2"
38
38
38
38
55
55
2 1/2"
41
41
41
41
62
62
3"
44
44
44
44
73
73
3 1/2"
48
51
48
51
-
-
4"
51
51
51
51
84
84
5"
57
57
57
57
94
94
6"
60
60
78
78
105
105
8"
70
70
99
99
-
-
10"
78
78
94
89
-
-
12"
86
86
103
100
-
-
14"
89
89
100
105
-
-
16"
94
94
106
113
-
-
18"
97
103
111
119
-
-
20"
102
117
119
127
-
-
24"
116
137
140
140
-
-


Marking & Packing
Our products like welding outlets are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All welding outlets are marked with Trademark (Company’s LOGO), Grade, Size and Lot No. On requests we can do custom marking on our products.

Test Certificates
Manufacturer Test Certificate as per EN 10204-3.1, EN 10204-3.2, Raw Materials Certificate, NABL approved Lab Test Report, 100% Radiography Test Report, Third Party Inspection Report etc.
