45 Degree Outlets / Lateral Outlets

Guru Gautam Steels are manufacturer of 45 Degree Outlets Fittings and supply high quality 45°Outlets offer you the best prices in the market. 45° Outlets are tested and verified for durability, accuracy and precision.
45 Degree Outlets

MSS SP-97, ASTM A105 Carbon Steel 45 Deg Outlets, ASTM A182 Alloy Steel 45 Deg Lateral Outlets Manufacturer & Supplier in india.


45° Outlets SPECIFICATION :

Size : 1/2'' to 24''

Class : 3000LBS, 6000LBS, 9000LBS

Thickness : SCH 5S,SCH 10S, SCH 40S, SCH 80S, SCH 120S

Type : Lateral Outlet


45 Deg MATERIAL & GRADES :

Stainless Steel 45deg Outlets : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel 45deg Outlets : ASTM A105 / 350 LF2 / A516 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 / 70

Alloy Steel 45deg Outlets : ASTM / ASME A/SA 182 F1 / F5 / F9 / F11 / F22 / F91

Duplex Steel 45deg Outlets : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 UNS No S31803, S32205

Super Duplex 45deg Outlets : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 UNS No S32750, S32950

Nickel Alloy 45deg Outlets : ASTM / ASME SB 564 /160 /472, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II).

Copper Alloy 45deg Outlets : ASTM / ASME SB 61/62/151/152, UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200, Cupro Nickel 90/10 (C 70600), Cupro Nickel 70/30. (C 71500).

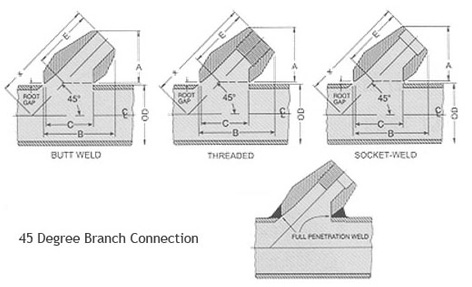

45 Degree Outlets DIMENSIONS :
45deg Outlets dimensions


Nominal
Run Pipe
Size
Outlet Size Dimensions
CL 3000 Threaded and Socket Weld CL 6000 Threaded and Socket Weld
A B C E A B C E
2 1/2 - 1 1/4 1/4 1 9/16 2 11/32 1 7/16 1 9/16 1 9/16 2 11/32 1 7/16 1 9/16
12 - 3
2 1/2 - 1 1/4 3/8 1 9/16 2 11/32 1 7/16 1 9/16 1 9/16 2 11/32 1 7/16 1 9/16
12 - 3
2 1/2 - 1 1/4 1/2 1 9/16 2 11/32 1 7/16 1 9/16
12 - 3
1 1/2 - 1 1/4
5 - 2 1/2 1 7/8 2 3/4 1 3/4 1 29/32
12 - 6
1 1/2 - 1 1/4
5 - 2 3/4 1 7/8 2 3/4 1 3/4 1 29/32
12 - 6
2 1/2 - 2
5 - 3 3/4 2 3/16 3 1/4 2 1/8 2 3/16
12 - 6
2 1/2 - 2
5 - 3 1 2 3/16 3 1/4 2 1/8 2 3/16 2 1/2 3 21/32 2 5/8 2 15/32
12 - 6
2 1/2 - 2
5 - 3 1 1/4 2 1/2 3 27/32 2 5/8 2 15/16 2 3/4 4 7/32 3 1/32 2 5/8
12 - 6
2 1/2 - 2
5 - 3 1 1/2 2 3/4 4 7/32 3 1/32
12 - 6
5 - 4
8 - 6 1 1/2 3 3/8 5 7/16 4 1/8 3 5/32
12 - 10
5 - 4
8 - 6 2 3 3/8 5 7/16 4 1/8 3 5/32 3 3/8 5 7/16 4 1/8 3 5/32
12 - 10
5 - 4
8 - 6 2 1/2
12 - 10
Order to
Specific Run
Pipe Sizes
3
Order to
Specific Run
Pipe Sizes
4


Nominal
Run Pipe
Size
Outlet Size Dimensions
Sch. 160 and XXS Butt Weld
A B C
2 1/2 - 1 1/4 1/4 1 9/16 2 5/16 1 7/16
12 - 3
2 1/2 - 1 1/4 3/8 1 9/16 2 5/16 1 7/16
12 - 3
2 1/2 - 1 1/4 1/2
12 - 3
1 1/2 - 1 1/4
5 - 2 1/2 1 13/16 2 3/4 1 3/4
12 - 6
1 1/2 - 1 1/4
5 - 2 3/4
12 - 6
2 1/2 - 2
5 - 3 3/4 2 1/8 3 1/4 2 1/8
12 - 6
2 1/2 - 2
5 - 3 1 2 1/2 3 13/16 2 5/8
12 - 6
2 1/2 - 2
5 - 3 1 1/4 2 3/4 4 1/4 3
12 - 6
2 1/2 - 2
5 - 3 1 1/2
12 - 6
5 - 4
8 - 6 1 1/2 3 3/8 5 3/8 4 1/8
12 - 10
5 - 4
8 - 6 2
12 - 10
5 - 4
8 - 6 2 1/2
12 - 10
Order to
Specific Run
Pipe Sizes
3
Order to
Specific Run
Pipe Sizes
4


Marking & Packing
Our products like 45deg Outlets are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All 45deg Outlets are marked with Trademark (Company’s LOGO), Grade, Size and Lot No. On requests we can do custom marking on our products.

Test Certificates
Manufacturer Test Certificate as per EN 10204-3.1, EN 10204-3.2, Raw Materials Certificate, NABL approved Lab Test Report, 100% Radiography Test Report, Third Party Inspection Report etc.
