Threading Outlets

Guru Gautam Steels are manufacturer of Threading Outlets Fittings and supply high quality Threading Outlets offer you the best prices in the market. We supply Threading Outlets fittings in a number of hard wearing industrial grades to withstand high levels of flow & corrosion. Threading Outlets are tested and verified for durability, accuracy and precision.
Threading Outlets

MSS SP-97, ASTM A105 Carbon Steel Threading Outlet, ASTM A182 Alloy Steel Threading Outlets Manufacturer & Supplier in india.


Threading Outlet SPECIFICATION :

Size : 1/2'' to 24''

Class : 3000LBS, 6000LBS, 9000LBS

Thickness : SCH 5S,SCH 10S, SCH 40S, SCH 80S, SCH 120S

Type : Threading Outlet


Threading Outlets MATERIAL & GRADES :

Stainless Steel Threading Outlets : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Threading Outlets : ASTM A105 / 350 LF2 / A516 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 / 70

Alloy Steel Threading Outlets : ASTM / ASME A/SA 182 F1 / F5 / F9 / F11 / F22 / F91

Duplex Steel Threading Outlets : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 UNS No S31803, S32205

Super Duplex Threading Outlets : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 UNS No S32750, S32950

Nickel Alloy Threading Outlets : ASTM / ASME SB 564 /160 /472, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II).

Copper Alloy Threading Outlets : ASTM / ASME SB 61/62/151/152, UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200, Cupro Nickel 90/10 (C 70600), Cupro Nickel 70/30. (C 71500).


Threading Outlets DIMENSIONS :

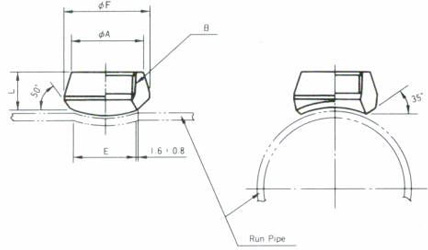

Threading Outlets dimensions


NPS 1/2 to 6 - Class 3000
NPS

A
B
C
1/2
INCH
MM
1
25.40
1-13/32
35.71
15/16
23.81
3/4
INCH
MM
1-1/16
26.98
1-23/32
43.65
1-5/32
29.36
1
INCH
MM
1-5/16
33.33
2
50.80
1-7/16
36.51
1 ¼
INCH
MM
1-5/16
33.33
2-9/16
65.08
1-3/4
44.45
1 ½
INCH
MM
1-3/8
34.92
2-27/32
72.23
2
50.80
2
INCH
MM
1-1/2
38.10
3-15/32
88.10
2-9/16
65.08
2 ½
INCH
MM
1-13/16
46.03
4-1/16
103.18
3
76.20
3
INCH
MM
2
50.80
4-13/16
122.23
3-11/16
93.66
3 ½
INCH
MM
2-1/8
53.975
5-7/32
132.55
4
101.6
4
INCH
MM
2-1/4
57.15
5-31/32
151.60
4-3/4
120.65
5
INCH
MM
2-5/8
66.67
7-5/16
185.73
5-9/16
141.28
6
INCH
MM
2-3/4
69.85
8-5/8
219.07
6-11/16
169.86


NPS 1/2 to 2 - Class 6000
NPS

A
B
C
1/2
INCH
MM
1-1/4
31.75
1-23/32
43.65
3/4
19.05
3/4
INCH
MM
1-7/16
36.51
1-61/64
49.60
1
25.40
1
INCH
MM
1-9/16
39.68
2-7/16
61.91
1-5/16
33.33
1 ¼
INCH
MM
1-5/8
41.27
2-23/32
69.05
1-1/2
38.10
1 ½
INCH
MM
1-11/16
42.86
3-1/4
82.55
1-15/16
49.21
2
INCH
MM
2-1/16
52.38
4-1/32
102.39
2-3/4
69.85


Marking & Packing
Our products like Threading outlets are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All Threading outlets are marked with Trademark (Company’s LOGO), Grade, Size and Lot No. On requests we can do custom marking on our products.

Test Certificates
Manufacturer Test Certificate as per EN 10204-3.1, EN 10204-3.2, Raw Materials Certificate, NABL approved Lab Test Report, 100% Radiography Test Report, Third Party Inspection Report etc.
