Socket weld Outlets
MSS SP-97, ASTM A105 Carbon Steel Socket Weld Outlet, ASTM A182 Alloy Steel Socket Weld Outlets Manufacturer & Supplier in india.
Socket Weld Outlet SPECIFICATION :
Size : 1/2'' to 24''
Class : 3000LBS, 6000LBS, 9000LBS
Thickness : SCH 5S,SCH 10S, SCH 40S, SCH 80S, SCH 120S
Type : Socket Weld Outlet
Socket Weld Outlet MATERIAL & GRADES :
Stainless Steel Socket Weld Outlets : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Socket Weld Outlets : ASTM A105 / 350 LF2 / A516 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel Socket Weld Outlets : ASTM / ASME A/SA 182 F1 / F5 / F9 / F11 / F22 / F91
Duplex Steel Socket Weld Outlets : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 UNS No S31803, S32205
Super Duplex Socket Weld Outlets : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 UNS No S32750, S32950
Nickel Alloy Socket Weld Outlets : ASTM / ASME SB 564 /160 /472, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II).
Copper Alloy Socket Weld Outlets : ASTM / ASME SB 61/62/151/152, UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200, Cupro Nickel 90/10 (C 70600), Cupro Nickel 70/30. (C 71500).

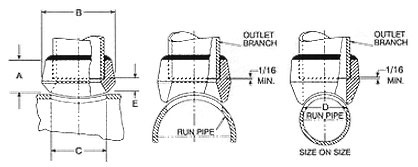

Socket Weld Outlets DIMENSIONS :
| Reducing Sizes | |||||||
| CL 3000 | Outlet Size Inches |
Dimensions | Appx. Wt Pounds |
||||
| A | B | C | D | E | |||
| 1/8 | 3/4 |
1 |
5/8 |
0.269 |
9/32 |
0.10 |
|
| 1/4 | 3/4 |
1 |
5/8 |
0.364 |
9/32 |
0.10 |
|
| 3/8 | 13/16 |
1 1/4 |
3/4 |
0.493 |
7/16 |
0.20 |
|
| 1/2 | 1 |
1 13/32 |
29/32 |
0.622 |
9/16 |
0.30 |
|
| 3/4 | 1 1/16 |
1 23/32 |
1 5/32 |
0.824 |
9/16 |
0.35 |
|
| 1 | 1 5/16 |
2 |
1 7/16 |
1.049 |
25/32 |
0.60 |
|
| 1 1/4 | 1 5/16 |
2 9/16 |
1 3/4 |
1.380 |
3/4 |
0.85 |
|
| 1 1/2 | 1 3/8 |
2 27/32 |
2 |
1.610 |
3/4 |
1.00 |
|
| 2 | 1 1/2 |
3 15/32 |
2 9/16 |
2.067 |
13/16 |
1.60 |
|
| 2 1/2 | 1 9/16 |
4 1/16 |
3 |
2.469 |
3/4 |
2.75 |
|
| 3 | 1 3/4 |
4 13/16 |
3 11/16 |
3.068 |
15/16 |
3.80 |
|
| 3 1/2 | 2 1/8 |
5 7/32 |
4 |
3.548 |
1 |
4.30 |
|
| 4 | 1 7/8 |
5 31/32 |
4 3/4 |
4.026 |
1 1/16 |
7.25 |
|
| 5 | 2 5/8 |
7 5/16 |
5 9/16 |
5.047 |
1 11/32 |
12.00 |
|
| 6 | 2 3/4 |
8 5/8 |
6 11/16 |
6.065 |
1 13/32 |
14.50 |
|
| CL 6000 | 1/2 | 1 1/4 |
1 23/32 |
3/4 |
0.466 |
7/8 |
0.50 |
| 3/4 | 1 7/16 |
1 61/64 |
1 |
0.614 |
7/8 |
0.80 |
|
| 1 | 1 9/16 |
2 7/16 |
1 5/16 |
0.815 |
15/16 |
1.30 |
|
| 1 1/4 | 1 5/8 |
2 23/32 |
1 1/2 |
1.160 |
13/16 |
1.60 |
|
| 1 1/2 | 1 11/16 |
3 1/4 |
1 15/16 |
1.338 |
7/8 |
2.00 |
|
| 2 | 2 1/16 |
4 1/32 |
2 3/4 |
1.689 |
1 3/16 |
5.15 |
|
| Size on Size | |||||||
| CL3000 | Outlet Size Inches |
Dimensions | Appx. Wt in Pounds |
||||
| A | B | C | D | E | |||
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 | |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 | |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 | |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 | 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 | |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 | |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 | |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 | |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 | |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 | |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 | |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 | |
