Manufacturer & Exporter - Stainless Steel Threaded Nipple Branch Outlet, ANSI B16.11 Nipple Branch Outlet, High Pressure Nipple Branch Outlet

Forged Fittings Threaded Nipple Branch Outlet

Carbon Steel, Alloy Steel ANSI B16.11, ASTM A182, ASME SA312 Pipe Fitting Threaded Nipple Branch Outlet Manufacturer & Supplier in india.

forged THREADED FITTING Nipple Branch Outlet SPECIFICATION :

Standard - ANSI/ASME :ASTM A182, ASTM SA182

Dimension : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799

Size : 1/8" NB TO 4" NB

Class : 2000LBS, 3000LBS, 6000LBS

Type : Threaded Nipple Branch Outlet

forged fittings Threaded Nipple Branch Outlet MATERIAL & GRADES :

Stainless Steel Threaded Nipple Branch Outlet : ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Carbon Steel Threaded Nipple Branch Outlet : ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

Alloy Steel Threaded Nipple Branch Outlet : ASTM / ASME A182, ASTM / ASME A335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Duplex Steel Threaded Nipple Branch Outlet : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S31803, S32205

Super Duplex Threaded Nipple Branch Outlet : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S32750, S32950

Nickel Alloy Threaded Nipple Branch Outlet : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Copper Nickel (Cupro-Nickel 90/10 & 70/30).

Low Temperature Carbon Steel Threaded Nipple Branch Outlet : ASTM/ASME A420 SA/420 WPL3, WPL6

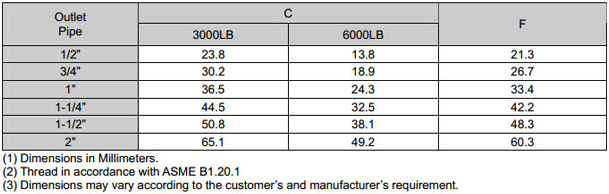

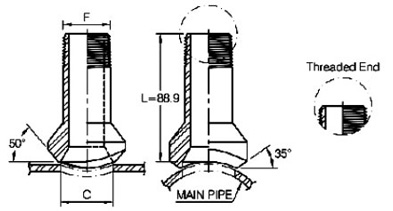

high pressure fitting Threaded Nipple Branch Outlet DIMENSIONS :

Marking & Packing

Our products like forged threaded pipe fitting nipple branch outlet are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All forged threaded pipe fitting nipple branch outlet are marked with Trademark (Company’s LOGO), Grade, Size and Lot No. On requests we can do custom marking on our products.

Test Certificates

Manufacturer Test Certificate as per EN 10204-3.1, EN 10204-3.2, Raw Materials Certificate, NABL approved Lab Test Report, 100% Radiography Test Report, Third Party Inspection Report etc.
