Forged Socket Weld Fittings 90 Degree Elbow Outlet

Guru Gautam Steels are Manufacturers of Forged Socket Weld Fittings 90° Elbow Outlet and Supply high quality ASME B16.11 / BS3799 90° Elbow Outlet offer you the best prices in the market. Forged Socket Weld Fittings 90° Elbow Outlet are used only in conjunction with ASME Pipe. Forged Socket Weld Fittings 90° Elbow Outlet are designed for wide use in different industries like oil refineries, chemical processing, petrochemical and many other industries.
Forged Socket Weld 90° Elbow Outlet

Carbon Steel, Alloy Steel ANSI B16.11, ASTM A182, ASME SA312 Socket Weld Fitting 90° Elbow Outlet Manufacturer & Supplier in india.


forged Socket Weld FITTING 90° Elbow Outlet SPECIFICATION :

Standard - ANSI/ASME :ASTM A182, ASTM SA182

Dimension : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799

Size : 1/8" NB TO 4" NB

Class : 2000LBS, 3000LBS, 6000LBS

Type : Socket Weld Fitting 90° Elbow Outlet


forged fittings Socket Weld 90° Elbow Outlet MATERIAL & GRADES :

Stainless Steel Socket Weld 90° Elbow Outlet : ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Carbon Steel Socket Weld 90° Elbow Outlet : ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

Alloy Steel Socket Weld 90° Elbow Outlet : ASTM / ASME A182, ASTM / ASME A335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Duplex Steel Socket Weld 90° Elbow Outlet : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S31803, S32205

Super Duplex Socket Weld 90° Elbow Outlet : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S32750, S32950

Nickel Alloy Socket Weld 90° Elbow Outlet : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Copper Nickel (Cupro-Nickel 90/10 & 70/30).

Low Temperature Carbon Steel Socket Weld 90° Elbow Outlet: ASTM/ASME A420 SA/420 WPL3, WPL6

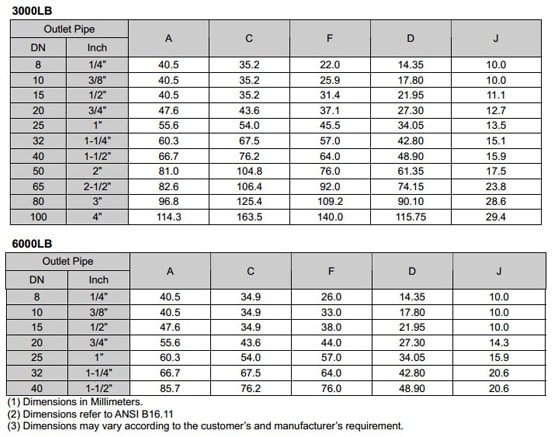

high pressure fitting Socket Weld 90° Elbow Outlet DIMENSIONS :
forged Socket Weld 90 deg elbow Outlet dimensions

forged Socket Weld 90 deg elbow Outlet dimensions


Marking & Packing
Our products like forged Socket Weld pipe fitting 90° Elbow Outlet are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All forged Socket Weld pipe fitting 90° Elbow Outlet are marked with Trademark (Company’s LOGO), Grade, Size and Lot No. On requests we can do custom marking on our products.

Test Certificates
Manufacturer Test Certificate as per EN 10204-3.1, EN 10204-3.2, Raw Materials Certificate, NABL approved Lab Test Report, 100% Radiography Test Report, Third Party Inspection Report etc.
